HSK Frame

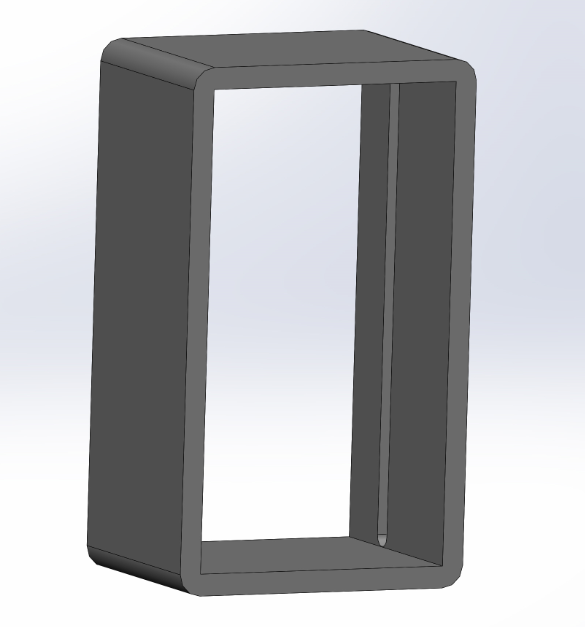

Hawke’s range of transit frames, for both welding and bolting, meet the various requirements of offshore and marine applications. HS is the most common frame type. HSF frames are for less accurate holes cut in decks and bulkheads. HSR is a frame for use in high-stress areas. The HSK frame allows installations in positions where the transit needs to elevate above possible contamination. Hawke has frames for both casting into the structure and mounting in lightweight wall constructions. Frames are also available for use in EMC and Explosion applications. The Hawke HSK frame is an extended version of the regular HS frame. The total depth of the frame is 120mm. This frame type is sometimes used for an angular attachment to accommodate stiff cables that do not pass in a straight angle through a deck or bulkhead.
