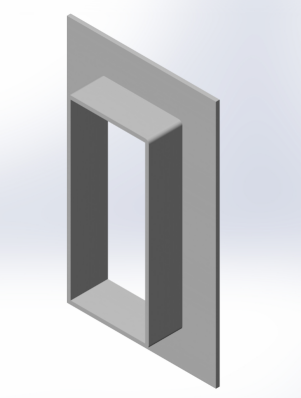

HSF Frame

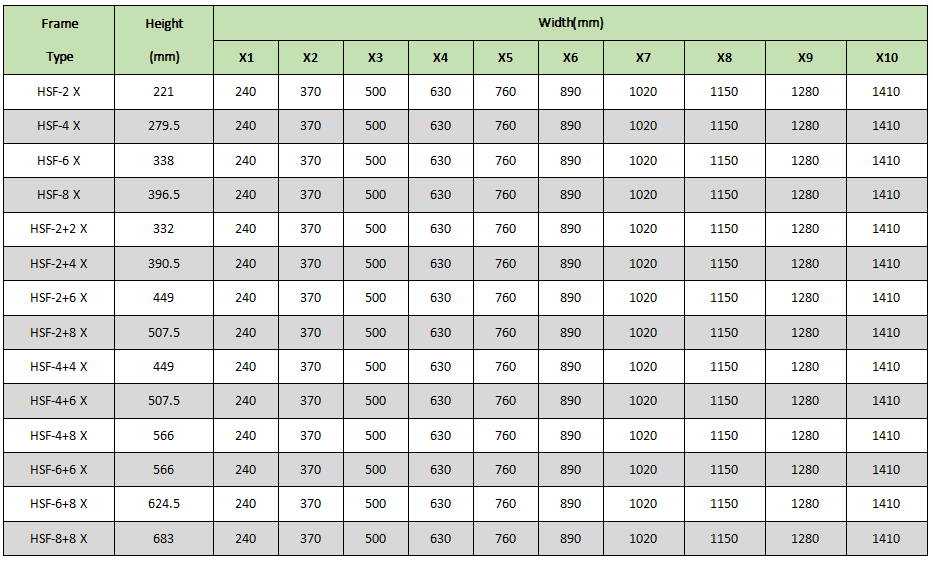

Hawke’s range of transit frames, for both welding and bolting, meet the various requirements of offshore and marine applications. HS is the most common frame type. HSF frames are for less accurate holes cut in decks and bulkheads. HSR is a frame for use in high-stress areas. The HSK frame allows installations in positions where the transit needs to elevate above possible contamination. Hawke has frames for both casting into the structure and mounting in lightweight wall constructions. Frames are also available for use in EMC and Explosion applications. HSF frames are available in four standard sizes, 2, 4, 6 and 8, and has the internal measurements of the HS, with a flange: 60 mm wide and 10 mm thick. They may be combined vertically & horizontally to create multiple frames. As with all our frames, HS is produced in mild steel, stainless steel, or aluminum. For installations where cables are already in place, specify HSFO which has a removable end.


Product Catalog

HSF Frame [PDF]
